Leading brand of electrostatic precipitator for commercial kitchen ventilation.

RUIHE / DR. AIRE Top precipitator for restaurant factory for kitchen

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-3500 / DGRH-K-2-3500U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. At the last stage of the production of RUIHE / DR. AIRE , it has to go through disinfection treatment. This treatment is required in the dining tools industry to guarantee no contaminant to the food. The product adopts intelligent electrostatic power control system to maintain a high purification rate
2. The product, with so many good characteristics, is adaptable to various applications. With sealing strip applied, the product ensures sealing performance
3. The product has very good oil resistance. It can be fully submerged in oil and maintain good resistance, and will not swell in reaction to the oil. The product consists of two sections with high and low voltage to absorb specific particles
4. This product features high efficiency with low power consumption, and it is widely applied in the Internet, scientific research, and education fields. The product is patented for its unique design and advanced technology
5. The product is reliable and stable in a high vibration environment. All parts are highly integrated and they will be not easily affected by the high vibration environment. The product can remove odor effectively with the help of activated carbon filter and UV-C filter

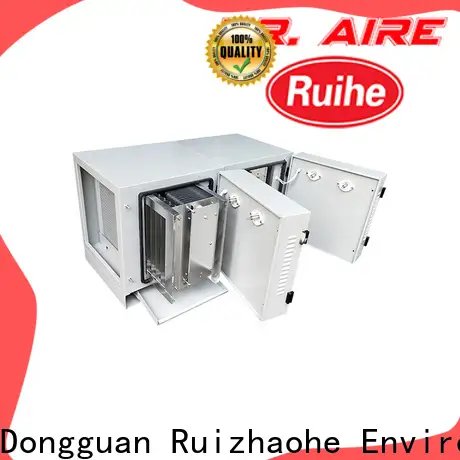

RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. RUIHE ESP system is ideal for the removal of these particles from commercial cooking applications, as well as oil mist from industrial processes. Double pass models will help you to remove them more efficiently!

Specification

DGRH-K-2-3500 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-3500U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-3500	3000-3500	1280765730	485*530	>98%	<100	320	120	W/O UV-C tube, double pass
2	DGRH-K-2-3500U	3000-3500	1280765730	485*530	>98%	<100	480	126	W/ 4*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

Commercial kitchen

Restaurants

RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Our factory is located in a place that is near to the railroad, highway, and ports. This enables us to shorten the shipment distance and cut the load and unload times during transport links, which eventually helps cut transportation costs.
2. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. guarantee service for its costumers. Inquire!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
