Leading brand of electrostatic precipitator for commercial kitchen ventilation.

RUIHE / DR. AIRE Top esp electrostatic precipitator factory for smoke

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-7000 / DGRH-K-2-7000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. esp electrostatic precipitator outshine other similar products with its materials. The product is capable of processing a large volume of air flow up to 1500 CMH
2. The efficiency of the worker will increase because he can work accurately and faster with the assistance of this product. The quality of product is officially certified under CE, RoHS and ISO9001:2015
3. The product is durable and anti-aging. It can endure longstanding and monotonous repeated mechanical operation without failure and malfunction. By stacking vertically and horizontally to expand air flow, the product achieves higher removal efficiency

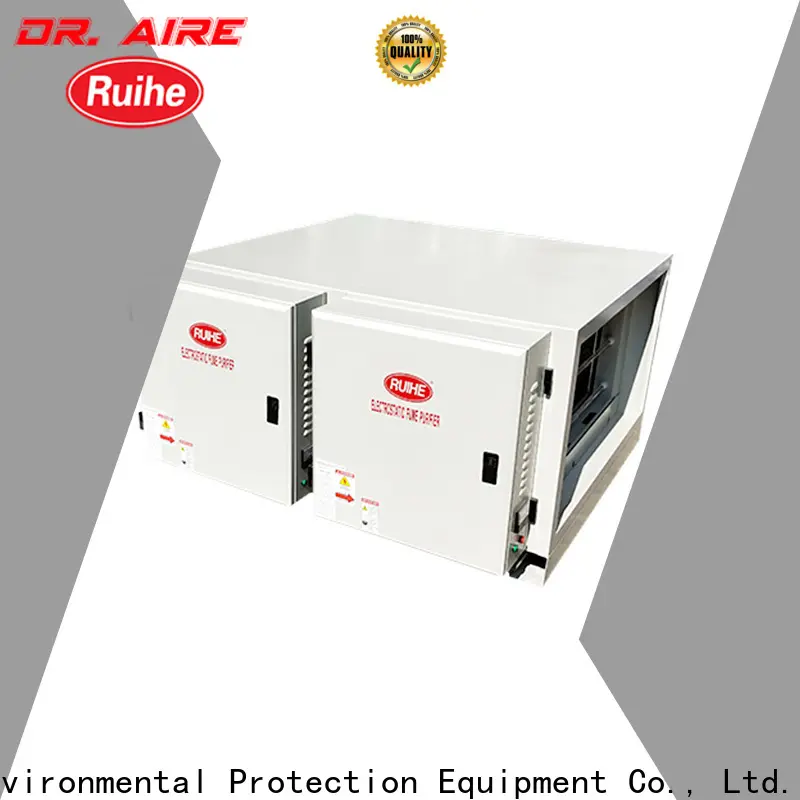

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Double pass RUIHE ESP system is designed for air emission at low altitude street level. Grease, smoke and odor emissions from commercial cooking applications will be purified efficiently to meet city air quality environmental protection standards. It will ensure smokeless and minimun odour emission from outlet in ductwork.

Specification

DGRH-K-2-7000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-7000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-7000	6000-7000	12801300730	1020*530	>98%	<100	560	188	W/O UV-C tube, double pass
2	DGRH-K-2-7000U	6000-7000	12801300730	1020*530	>98%	<100	1160	198	W/ 6*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-1

Commercial kitchen

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-2

Restaurants

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Being a reliable manufacturer and supplier, Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. boasts a wealth of experience in designing and manufacturing high-quality . Our company has excellent project managers. They are able to carry out a systematic analysis of customer needs, work with them to develop the best product solutions and run through their implementation process.
2. Our staff comes from a variety of backgrounds and cultures with years of rich experience and expertise. They are highly flexible to meet our customers' needs to the greatest extent.
3. We have adapted to the demands of a growing and rapidly changing industry. We now boast a large sophisticated facility, the highest quality standards in the industry and a dynamic research and development team. With being its service philosophy, Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. provides . Call now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
