Leading brand of electrostatic precipitator for commercial kitchen ventilation.

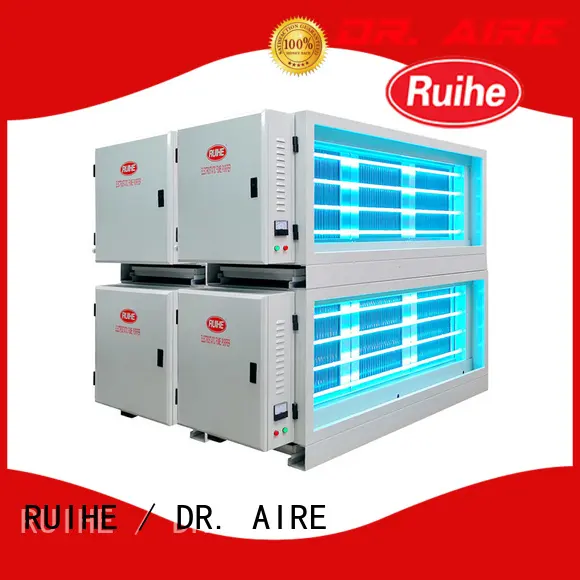

RUIHE / DR. AIRE pass esp unit company for home 1

RUIHE / DR. AIRE pass esp unit company for home 2

RUIHE / DR. AIRE pass esp unit company for home

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-21000 / DGRH-K-2-21000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. Through the participation of technical staff, esp unit has ranked top in its design. By stacking vertically and horizontally to expand air flow, the product achieves higher removal efficiency
2. Aided by professional team, the service of RUIHE / DR. AIRE is well-known in esp unit industry. The product is patented for its unique design and advanced technology
3. The product features low power or energy consumption. The product, with a compact design, adopts the most advanced energy-saving technology. The product consists of two sections with high and low voltage to absorb specific particles
4. This product has a best-suited shape. Its dimensions are calculated based on the loads on its elements and strength of the material.

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

"RUIHE double pass electrostatic precipitator is designed for commercial cooking fume, odour capture and management. Over 98% removal rate ESP. It includes a collector cell combination of high voltage and low voltage section. With advantages of low pressure drop, there will be lower energy cost to operate it. "

Specification

DGRH-K-2-21000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-21000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-21000	18000-21000	128018351460	1560*1260	>98%	<100	1680	488	W/O UV-C tube,double pass
2	DGRH-K-2-21000U	18000-21000	128018351460	1560*1260	>98%	<100	4080	516	W/ 16*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-1

Commercial kitchen

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-2

Restaurants

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has been concentrated on esp unit manufacturing for a long time.
2. We have a top R&D team to keep improving quality and design for our precipitator maintenance .
3. Our carbon filter for kitchen exhaust is your image and we will build best image for you. Please contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
