Leading brand of electrostatic precipitator for commercial kitchen ventilation.

RUIHE / DR. AIRE oil extractor fan system factory for smoke 1

RUIHE / DR. AIRE oil extractor fan system factory for smoke 2

RUIHE / DR. AIRE oil extractor fan system factory for smoke

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-21000 / DGRH-K-2-21000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Product Comparison

electrostatic precipitator manufacturers is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with products in the same category, electrostatic precipitator manufacturers we produce is equipped with the following advantages.

Product Details

RuiZhaoHe strives excellent quality by attaching great importance to details in the production of oil mist collector.Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, RuiZhaoHe's oil mist collector is highly competitive in the domestic and foreign markets.

Company Advantages
1. In order to be more competitive, our extractor fan system are all designed to be unique.
2. The product poses no safety hazards. It generally produces no risks of electrical leakage or problems of electric shock.
3. With bright industry prospects, this product is bound to bring benefits to customers.

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter

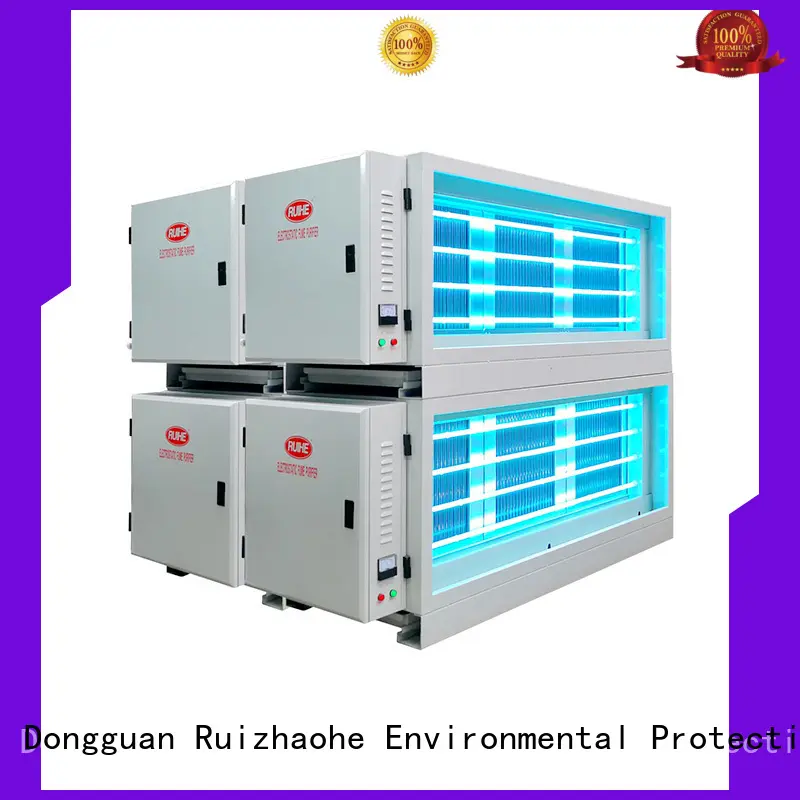

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

"RUIHE double pass electrostatic precipitator is designed for commercial cooking fume, odour capture and management. Over 98% removal rate ESP. It includes a collector cell combination of high voltage and low voltage section. With advantages of low pressure drop, there will be lower energy cost to operate it. "

Specification

DGRH-K-2-21000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-21000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-21000	18000-21000	128018351460	1560*1260	>98%	<100	1680	488	W/O UV-C tube,double pass
2	DGRH-K-2-21000U	18000-21000	128018351460	1560*1260	>98%	<100	4080	516	W/ 16*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-1

Commercial kitchen

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-2

Restaurants

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is professional as a extractor fan system manufacturer.
2. Over the years, we have gained a new revenue potential by making our business go global. We have expanded the overseas market in America, Australia, Germany, and so on.
3. With the business tenet of , Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. are striving for the first-class brand. Get price! Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. will cooperate with the old and new customers with the goal of 'super innovation and service' to create a brilliant future together. Get price!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
