Leading brand of electrostatic precipitator for commercial kitchen ventilation.

RUIHE / DR. AIRE machine commercial kitchen exhaust hood controls factory for kitchen 1
RUIHE / DR. AIRE machine commercial kitchen exhaust hood controls factory for kitchen 1

RUIHE / DR. AIRE machine commercial kitchen exhaust hood controls factory for kitchen

Shipping information:
1 Unit/ wooden case
Model:
DGRH-K-2-3500 / DGRH-K-2-3500U
MOQ:
1 Unit
Payment:
T/T, L/C
Delivery time:
Depends on order quantity
Start Port:
Shenzhen, Guangzhou
Certification:
CE, RoHS, ISO9001:2015
Inquiry
Delivery Time
5-10 days
Start Port
Shenzhen, Guangzhou
Supply Ability
1000 units
Application Scope
RuiZhaoHe's electrostatic precipitator manufacturers is widely used in the Manufacturing Machinery Other Machinery & Industry Equipment industry.While providing quality products, RuiZhaoHe is dedicated to providing personalized solutions for customers according to their needs and actual situations.
  • RUIHE / DR. AIRE machine commercial kitchen exhaust hood controls factory for kitchen 2
Company Advantages
1. RUIHE / DR. AIRE has gone through strict assessments. It has been evaluated in terms of finite element stress analysis of components, fatigue analysis, load analysis, waterproof analysis, etc.
2. The product is energy saving. The design adopts the latest energy conservation technologies which significantly reduces energy consumption.
3. With such high efficiency, the product is therefore essential in many industries. It can ensure the necessary agility of processes and to produce as efficiently and profitably as possible at the same time.
4. Having this product definitely speeds up the production time. Because no thinking is needed by it, there is better repeatability and less human error.

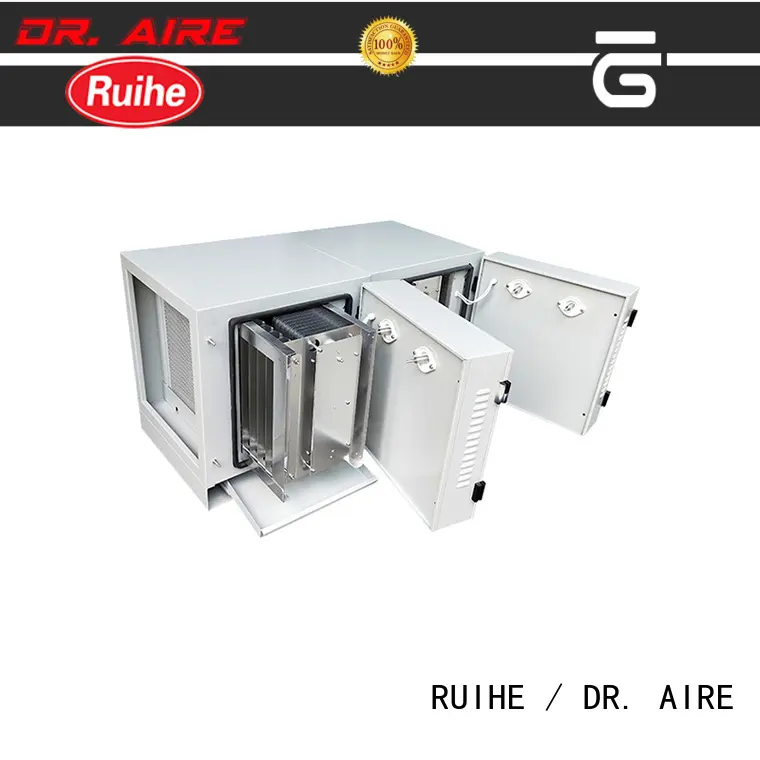

RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP
Commercial kitchen electrostatic precipitator (ESP)- Low altitude air emission

Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards.  RUIHE ESP system is ideal for the removal of these particles from commercial cooking applications, as well as oil mist from industrial processes. Double pass models will help you to remove them more efficiently!


Specification


DGRH-K-2-3500 Electrostatic Precipitator (ESP) - double pass  >98% removal efficiency
DGRH-K-2-3500U Electrostatic Precipitator (ESP) W/UV-C filter - double pass  >98% removal efficiency


NO.ModelAir Flow (M³/H)

Cabinet Size L*W*H (MM)

Flange Size (W*H)Removal efficiency Rate

Wind Resistance (PA)

Power (Watt)Net Wight (KG)Remark
1DGRH-K-2-35003000-35001280*765*730485*530>98%<100320120W/O UV-C tube, double pass
2DGRH-K-2-3500U3000-35001280*765*730485*530>98%<100480126W/ 4*UV-C tube,double pass



Application


Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.


RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-1
Commercial kitchen
RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-2
Restaurants
RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-3
Hotels



Advantage


1
1
Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
1
1
Modular in design:  Easy installation, maintenance and cleaning.
1
1
Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
1
1
Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
1
1
Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
1
1
Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
1
1
Safety and Stability:  (1) Door-open power-off protection,  (2) Over-current, voltage & temperature protection
1
1
Greatly reduces the grease accumulation in the ducts and fire hazard.
1
1
Optional: Photolysis and odour removal efficiently with UV-C filter systems.




Company Features
1. The spreading popularity of RUIHE / DR. AIRE brand has showed its strong technical strength.
2. Our company has set up a sales team. As skilled problem solvers, the salesmen in this team can interact well with diverse populations and business partners.
3. We will anchor environmental considerations into our business planning and decisionmaking processes. We aim for minimum impact on air, water, and soil, hence we will adhere to the strictest regulations on wastes management. We have a clear target: to take the lead in the international markets. Besides providing customers excellent quality, we also pay attention to every customer's demands and strive hard to meet their needs. Our business mission is to provide our clients and employees with the means to reach their maximum potential. We try to increase profitability and efficiency together with our employees and customers.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
