Leading brand of electrostatic precipitator for commercial kitchen ventilation.

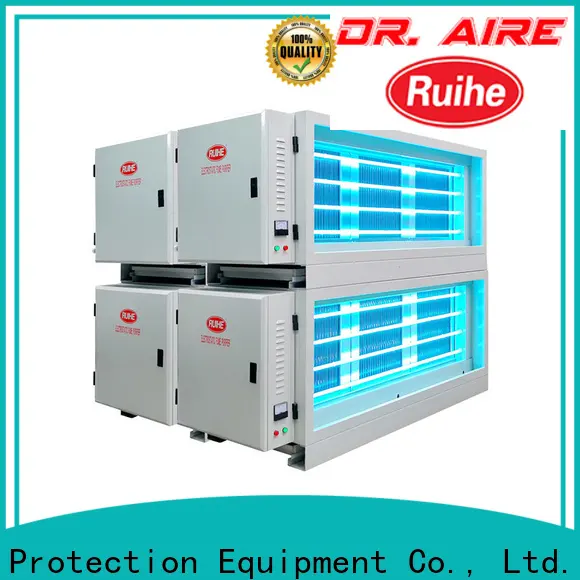

RUIHE / DR. AIRE High-quality commercial kitchen exhaust scrubbers company for house 1

RUIHE / DR. AIRE High-quality commercial kitchen exhaust scrubbers company for house 2

RUIHE / DR. AIRE High-quality commercial kitchen exhaust scrubbers company for house

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-21000 / DGRH-K-2-21000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. The design of RUIHE / DR. AIRE is very scientific. Humidity, temperature, carbon dioxide, and light are the environmental issues being taken into consideration in its design and others such as rainwater, air movement or noises are also taken into account. The product is patented for its unique design and advanced technology
2. The product is going to expand market further as we keep product improvement. The product can greatly save energy by using power-off protection when the door is opened
3. It has a fine hardness. It has good cracking proof capacity and is not easy to deform due to the cold stamping process during production. The product is equipped with a remote control system to greatly improve operational security

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

"RUIHE double pass electrostatic precipitator is designed for commercial cooking fume, odour capture and management. Over 98% removal rate ESP. It includes a collector cell combination of high voltage and low voltage section. With advantages of low pressure drop, there will be lower energy cost to operate it. "

Specification

DGRH-K-2-21000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-21000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-21000	18000-21000	128018351460	1560*1260	>98%	<100	1680	488	W/O UV-C tube,double pass
2	DGRH-K-2-21000U	18000-21000	128018351460	1560*1260	>98%	<100	4080	516	W/ 16*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-1

Commercial kitchen

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-2

Restaurants

RUIHE-Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is an exporting commercial kitchen exhaust scrubbers company that has been in business over decades of years. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. continuously introduces professional and technical personnel to enhance technical capabilities.
2. We offer specialist education to managers, encourage employees to obtain trade skill qualifications. They are able to provide a wide range of creative proposals for improving production. Such efforts contribute to the stable supply of high-quality products.
3. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has technical competitiveness in the field of kitchen ventilating device . We will tightly uphold the idea of [经营理念] during cooperation with our customers. Get price!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
