Commercial kitchen
Leading brand of electrostatic precipitator for commercial kitchen ventilation.
RUIHE / DR. AIRE Best commercial kitchen exhaust hood controls manufacturers for smoke
Shipping information:
1 Unit/ wooden case
Model:
DGRH-K-2-3500 / DGRH-K-2-3500U
MOQ:
1 Unit
Payment:
T/T, L/C
Delivery time:
Depends on order quantity
Start Port:
Shenzhen, Guangzhou
Certification:
CE, RoHS, ISO9001:2015
Delivery Time
5-10 days
Start Port
Shenzhen, Guangzhou
Supply Ability
1000 units
Company Advantages
1. The design of RUIHE / DR. AIRE involves the following steps: preparation of initial idea and/or sketch, CAD (Computer Aided Design) software programming, and 3D wax prototype. The product is well received in America, Europe, Asia, etc
2. It is customizable with various specifications in tune with the need of the clients. Based on adjustment on the number of module unit, it satisfies different needs of purification rate
3. Each product meets the quality standards through strict quality test. The product can remove smaller oil particles as small as 0.01 microns

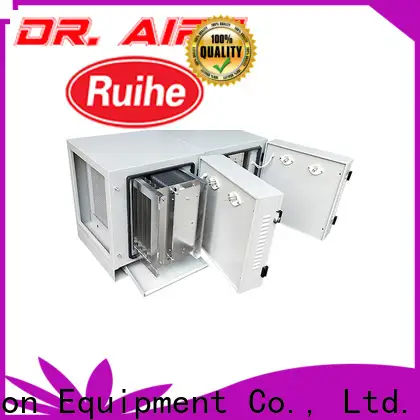

![RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP]()
![RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-1]()
![RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-2]()
![RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-3]()
Company Features
1. Over the years, Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has developed and become world-renowned for our excellent quality . We keep growing and developing strong relationships with businesses around the world. Through the process of getting a product to market was becoming more complex, opportunities for achieving greater efficiencies with international vendors started to emerge.
2. In Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd., the production equipment is advanced along with the testing methods are complete.
3. Our quality system, ISO-9001 certification is today the fundamental key to our optimized processes in the workflow. It constantly drives improvements and systematically implements corrective processes in order to avoid mistakes to be repeated. We adhere to the commitment to sustainable development. We are planning to introduce advanced technological production facilities to reduce the environmental negative influence throughout the whole production.
1. The design of RUIHE / DR. AIRE involves the following steps: preparation of initial idea and/or sketch, CAD (Computer Aided Design) software programming, and 3D wax prototype. The product is well received in America, Europe, Asia, etc
2. It is customizable with various specifications in tune with the need of the clients. Based on adjustment on the number of module unit, it satisfies different needs of purification rate
3. Each product meets the quality standards through strict quality test. The product can remove smaller oil particles as small as 0.01 microns
Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission
Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. RUIHE ESP system is ideal for the removal of these particles from commercial cooking applications, as well as oil mist from industrial processes. Double pass models will help you to remove them more efficiently!
Specification
DGRH-K-2-3500 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-3500U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency
| NO. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power (Watt) | Net Wight (KG) | Remark |
| 1 | DGRH-K-2-3500 | 3000-3500 | 1280*765*730 | 485*530 | >98% | <100 | 320 | 120 | W/O UV-C tube, double pass |
| 2 | DGRH-K-2-3500U | 3000-3500 | 1280*765*730 | 485*530 | >98% | <100 | 480 | 126 | W/ 4*UV-C tube,double pass |
Application
Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.
Restaurants
Hotels
Advantage
1
1
Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
1
1
Modular in design: Easy installation, maintenance and cleaning.
1
1
Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
1
1
Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
1
1
Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
1
1
Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
1
1
Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
1
1
Greatly reduces the grease accumulation in the ducts and fire hazard.
1
1
Optional: Photolysis and odour removal efficiently with UV-C filter systems.
Company Features
1. Over the years, Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has developed and become world-renowned for our excellent quality . We keep growing and developing strong relationships with businesses around the world. Through the process of getting a product to market was becoming more complex, opportunities for achieving greater efficiencies with international vendors started to emerge.
2. In Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd., the production equipment is advanced along with the testing methods are complete.
3. Our quality system, ISO-9001 certification is today the fundamental key to our optimized processes in the workflow. It constantly drives improvements and systematically implements corrective processes in order to avoid mistakes to be repeated. We adhere to the commitment to sustainable development. We are planning to introduce advanced technological production facilities to reduce the environmental negative influence throughout the whole production.
