Leading brand of electrostatic precipitator for commercial kitchen ventilation.

RUIHE Brand clean pass low electrostatic precipitator diagram double

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-3500 / DGRH-K-2-3500U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. A 12-month warranty is provided for the product to meet customer' demands. Owing to its various quality attributes, provided electrostatic precipitator diagram is highly appreciated by RUIHE clients.
2. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd.'s customer service always works on a professional level. The product has better adsorption capacity in electric field owing to its greater absorption areas
3. The range offered by us comprises variety of Kitchen Electrostatic Precipitator. The product can be customized to the developing needs of the customers
4. Our electrostatic air filter can be washed and cleaned in short time. The product is capable of processing a large volume of air flow up to 1500 CMH
5. The product features compact structure, thus it has smaller size and lighter weight. Ruizhaohe electrostatic precipitator put the features of electrostatic filter,electrostatic precipitator working principle emphasis on the first to ensure the quality.

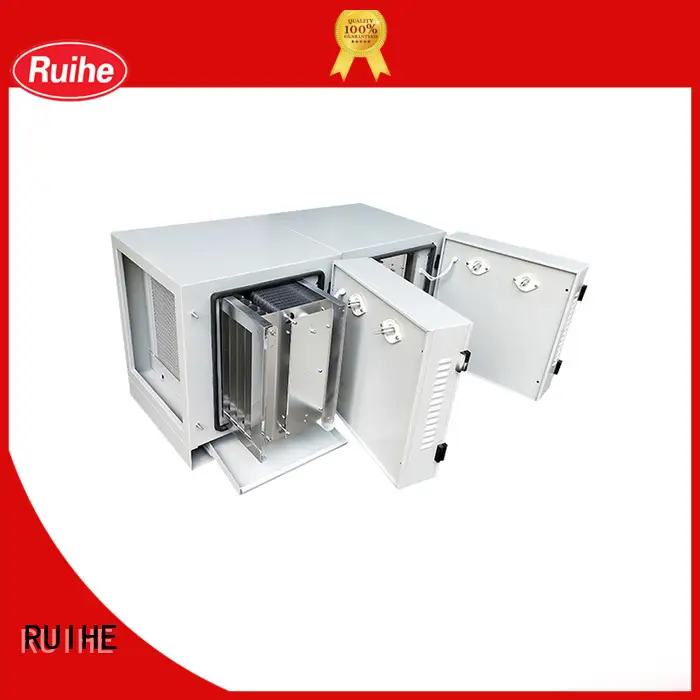

RUIHE-Kitchen Smoke Extractor | Commercial Kitchen Electrostatic Precipitator

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. RUIHE ESP system is ideal for the removal of these particles from commercial cooking applications, as well as oil mist from industrial processes. Double pass models will help you to remove them more efficiently!

Specification

DGRH-K-2-3500 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-3500U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-3500	3000-3500	1280765730	485*530	>98%	<100	320	120	W/O UV-C tube, double pass
2	DGRH-K-2-3500U	3000-3500	1280765730	485*530	>98%	<100	480	126	W/ 4*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

Commercial kitchen

Restaurants

RUIHE-Kitchen Smoke Extractor | Commercial Kitchen Electrostatic Precipitator-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. RUIHE specializes in manufacturing Kitchen Electrostatic Precipitator with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. RUIHE Offers A Wide Range Of electrostatic air filter, electrostatic precipitator diagram, electrostatic precipitator working principle At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. RUIHE focuses on continuous technological innovation to improve products and services. Contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
