Leading brand of electrostatic precipitator for commercial kitchen ventilation.

Quality RUIHE Brand quality Kitchen Electrostatic Precipitator

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-7000 / DGRH-K-2-7000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Product Details

RuiZhaoHe pursues perfection in every detail of electrostatic air cleaner, so as to show quality excellence.RuiZhaoHe's electrostatic precipitator manufacturers feature stable performance, high quality, and easy operation. Besides, they are reasonably-priced and well-designed. electrostatic air cleaner is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.

Company Advantages
1. It is validated that the structure of Kitchen Electrostatic Precipitator means having longer life. The product can remove smaller oil particles as small as 0.01 microns
2. electrostatic air filter is superior to the other similar product in electrostatic precipitator diagram. The product is well received in America, Europe, Asia, etc
3. The product will be further developed to suit the more application needs in the future. The product has better adsorption capacity in electric field owing to its greater absorption areas

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting

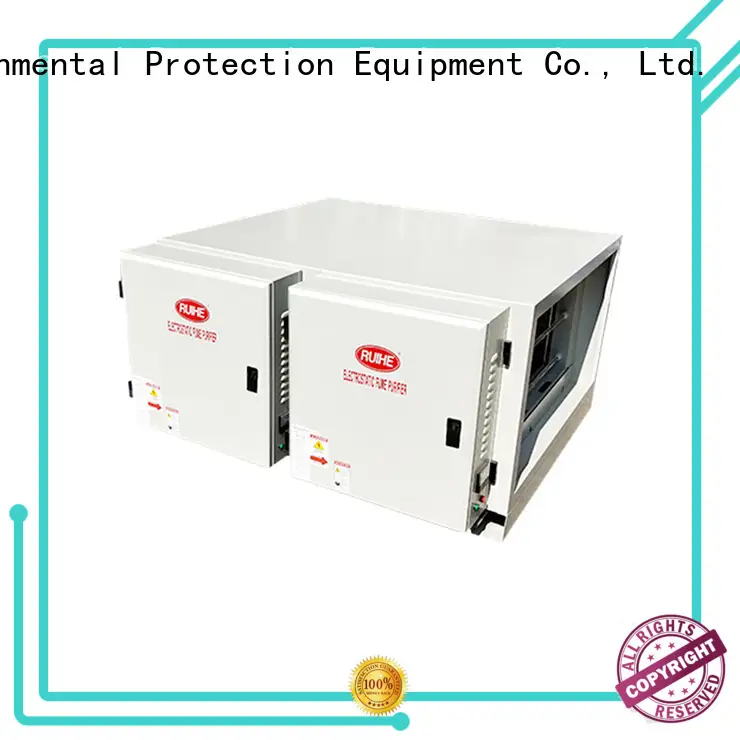

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Double pass RUIHE ESP system is designed for air emission at low altitude street level. Grease, smoke and odor emissions from commercial cooking applications will be purified efficiently to meet city air quality environmental protection standards. It will ensure smokeless and minimun odour emission from outlet in ductwork.

Specification

DGRH-K-2-7000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-7000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-7000	6000-7000	12801300730	1020*530	>98%	<100	560	188	W/O UV-C tube, double pass
2	DGRH-K-2-7000U	6000-7000	12801300730	1020*530	>98%	<100	1160	198	W/ 6*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-1

Commercial kitchen

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-2

Restaurants

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is an important producer of Kitchen Electrostatic Precipitator.
2. Customers associate RUIHE with quality.
3. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has been widely recognized and highly evaluated in the electrostatic air filter industry through cooperation with many excellent suppliers. Inquire online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
