Leading brand of electrostatic precipitator for commercial kitchen ventilation.

machine ruihe RUIHE Brand electrostatic precipitator diagram factory

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-31500 / DGRH-K-2-31500U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. The product is patented for its unique design and advanced technology. RUIHE material for electrostatic precipitator diagram is different from other companies' material and it's better.
2. The product features compact structure, thus it has smaller size and lighter weight. RUIHE will promote innovation work, and strive to develop more, newer and better products.
3. The Kitchen Electrostatic Precipitator offered by us is widely appreciated for its electrostatic precipitator working principle and electrostatic precipitator ppt. The product can greatly save energy by using power-off protection when the door is opened
4. The application of electrostatic air filter is more and more popular because it has features like electric precipitator. The product can remove odor effectively with the help of activated carbon filter and UV-C filter

RUIHE-Find Electrostatic Precipitator Working Principle Ppt Electrostatic Precipitator

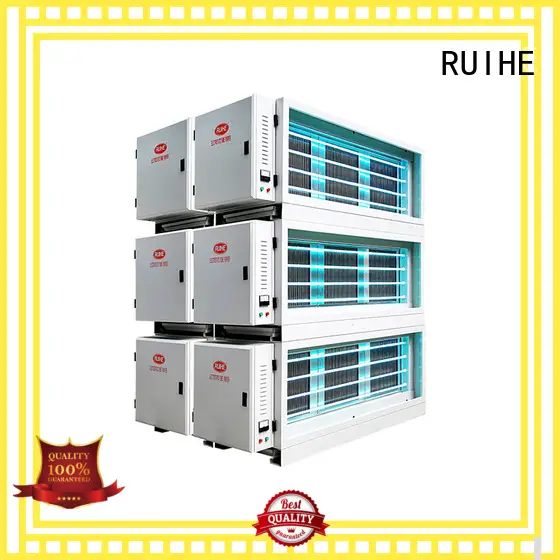

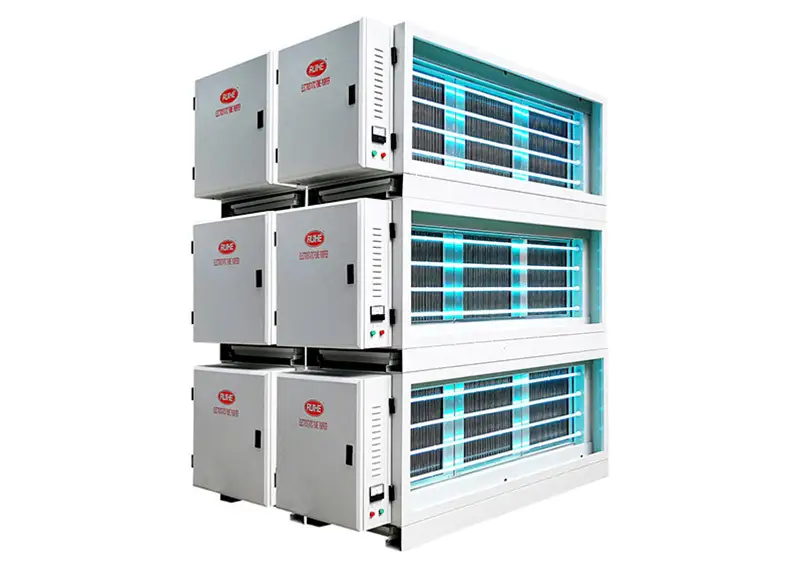

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

RUIHE double pass ESP system is a preffered commercial kitchen air pollution control equipment. Commercial kitchen equipment applictions create grease, smoke and odors. They can be filtered efficiently. Our ESP units are modular designs. It can be stacking together to meet different air flow and removal efficincy requirement.

Specification

DGRH-K-2-31500 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-31500U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-31500	27000-31500	128018352190	1560*1990	>98%	<100	2520	732	W/O UV-C tube, double pass
2	DGRH-K-2-31500U	27000-31500	128018352190	1560*1990	>98%	<100	6120	774	W/ 24*UV-C tube, double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Find Electrostatic Precipitator Working Principle Ppt Electrostatic Precipitator-1

Commercial kitchen

RUIHE-Find Electrostatic Precipitator Working Principle Ppt Electrostatic Precipitator-2

Restaurants

RUIHE-Find Electrostatic Precipitator Working Principle Ppt Electrostatic Precipitator-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is a Chinese manufacturer of high quality Kitchen Electrostatic Precipitator. - Equipped with a complete set of quality control technology, electrostatic air filter can be guaranteed with good quality.
2. Improving quality supervision during the electrostatic filter production is another process to ensure the quality.
3. Equipped with high precision components and manufactured with latest technology, RUIHE electrostatic air cleaner are used for electrostatic precipitator diagram. - RUIHE's devotion is to offer the most professional customer service which ranks top in smoke filter industry. Get more info!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
