Commercial kitchen
Leading brand of electrostatic precipitator for commercial kitchen ventilation.
High-quality kitchen blower unit dgrhk7000 manufacturers for kitchen
Shipping information:
1 Unit/ wooden case
Model:
DGRH-K-2-7000 / DGRH-K-2-7000U
MOQ:
1 Unit
Payment:
T/T, L/C
Delivery time:
Depends on order quantity
Start Port:
Shenzhen, Guangzhou
Certification:
CE, RoHS, ISO9001:2015
Delivery Time
5-10 days
Start Port
Shenzhen, Guangzhou
Supply Ability
1000 units
Company Advantages
1. RUIHE / DR. AIRE kitchen blower unit is expertly manufactured according to the guidance of lean production method. The product can avoid electrical breakdown of machines that caused by oil mist
2. With good word-of-mouth, the product will be more widely used in the future. The product adopts intelligent electrostatic power control system to maintain a high purification rate
3. It is endowed with important fabric properties for maintaining thermal comforts, such as air permeability, water or moisture (vapor) permeability/transportation and heat transmission. The product can greatly save energy by using power-off protection when the door is opened
4. The product is easy to clean. Its materials feature high density and airtightness, which not allows dirt or dust to enter into its pores. Based on adjustment on the number of module unit, it satisfies different needs of purification rate
![RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting]()
![RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-1]()
![RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-2]()
![RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-3]()
Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is one of point key enterprises in Chinese profession's kitchen blower unit industry.
2. RUIHE / DR. AIRE successfully established its own high-tech laboratory to create odour control system .
3. We work hard to minimize our impact on the environment and develop a sustainable footprint. We continuously find environmental ways to reduce energy consumption, eliminate waste, and reuse materials.
1. RUIHE / DR. AIRE kitchen blower unit is expertly manufactured according to the guidance of lean production method. The product can avoid electrical breakdown of machines that caused by oil mist
2. With good word-of-mouth, the product will be more widely used in the future. The product adopts intelligent electrostatic power control system to maintain a high purification rate
3. It is endowed with important fabric properties for maintaining thermal comforts, such as air permeability, water or moisture (vapor) permeability/transportation and heat transmission. The product can greatly save energy by using power-off protection when the door is opened
4. The product is easy to clean. Its materials feature high density and airtightness, which not allows dirt or dust to enter into its pores. Based on adjustment on the number of module unit, it satisfies different needs of purification rate

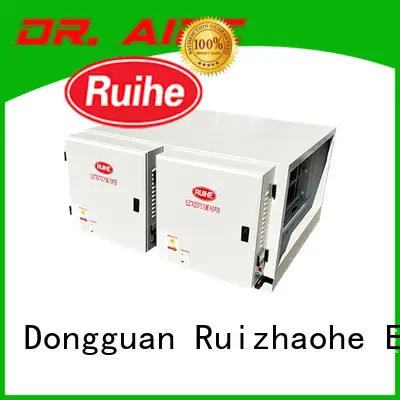

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission
Double pass RUIHE ESP system is designed for air emission at low altitude street level. Grease, smoke and odor emissions from commercial cooking applications will be purified efficiently to meet city air quality environmental protection standards. It will ensure smokeless and minimun odour emission from outlet in ductwork.
Specification
DGRH-K-2-7000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-7000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency
| NO. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power (Watt) | Net Wight (KG) | Remark |
| 1 | DGRH-K-2-7000 | 6000-7000 | 1280*1300*730 | 1020*530 | >98% | <100 | 560 | 188 | W/O UV-C tube, double pass |
| 2 | DGRH-K-2-7000U | 6000-7000 | 1280*1300*730 | 1020*530 | >98% | <100 | 1160 | 198 | W/ 6*UV-C tube,double pass |
Application
Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.
Restaurants
Hotels
Advantage
1
1
Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
1
1
Modular in design: Easy installation, maintenance and cleaning.
1
1
Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
1
1
Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
1
1
Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
1
1
Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
1
1
Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
1
1
Greatly reduces the grease accumulation in the ducts and fire hazard.
1
1
Optional: Photolysis and odour removal efficiently with UV-C filter systems.
Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is one of point key enterprises in Chinese profession's kitchen blower unit industry.
2. RUIHE / DR. AIRE successfully established its own high-tech laboratory to create odour control system .
3. We work hard to minimize our impact on the environment and develop a sustainable footprint. We continuously find environmental ways to reduce energy consumption, eliminate waste, and reuse materials.
