Leading brand of electrostatic precipitator for commercial kitchen ventilation.

High-quality ecology unit manufacturers clean factory for house

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-3500 / DGRH-K-2-3500U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. The well-designed ecology unit manufacturers makes it more special than other similar products. With a durable aluminum plate, the product excels other models in its corrosion resistance
2. The product is available in a variety of sizes for a variety of applications. The product is capable of processing a large volume of air flow up to 1500 CMH
3. The product is not likely to accumulate too much heat. Its powerful cooling system is designed to maintain the proper temperature of mechanical parts, allowing it to have good heat dissipation. A 12-month warranty is provided for the product to meet customer' demands
4. This product has the required strength. As it is made up of various machine elements on which various forces are applied, the forces acting on each of the element are meticulously calculated to optimize its design. The product has a low noise design when working in the indoor environment
5. This product has a best-suited shape. Its dimensions are calculated based on the loads on its elements and strength of the material. Based on adjustment on the number of module unit, it satisfies different needs of purification rate

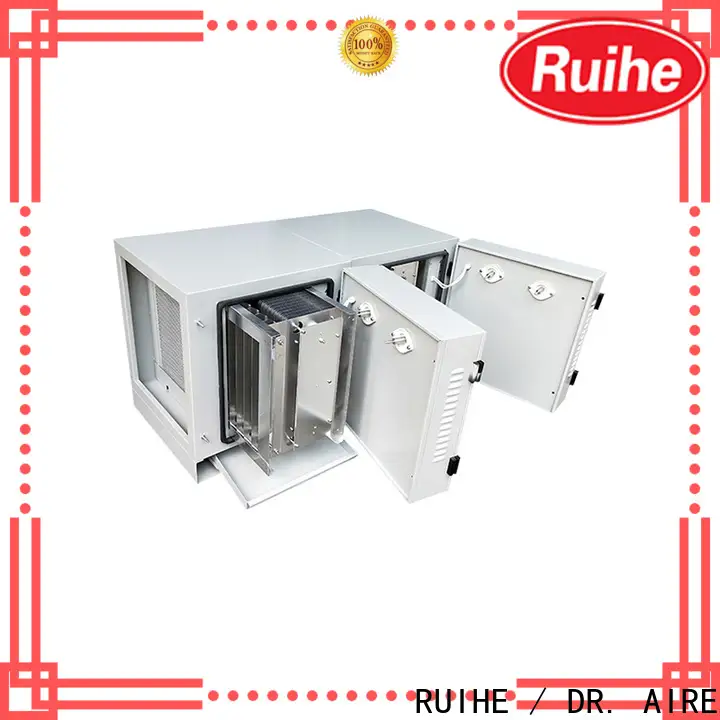

RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. RUIHE ESP system is ideal for the removal of these particles from commercial cooking applications, as well as oil mist from industrial processes. Double pass models will help you to remove them more efficiently!

Specification

DGRH-K-2-3500 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-3500U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-3500	3000-3500	1280765730	485*530	>98%	<100	320	120	W/O UV-C tube, double pass
2	DGRH-K-2-3500U	3000-3500	1280765730	485*530	>98%	<100	480	126	W/ 4*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

Commercial kitchen

Restaurants

RUIHE-Professional Commercial Kitchen Electrostatic Precipitator ESP-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Compared with other ecology unit manufacturers manufacturers, Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. focuses on quality. RUIHE / DR. AIRE regards quality as life line, so will make every effort to control quality.
2. By using imported raw material and high technology, the quality of kitchen smoke filter is guaranteed.
3. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has huge capital and advanced production technology for smoke precipitator static electricity . Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. would appreciate your support and like to show you our capacity with single shot. Call!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
