Leading brand of electrostatic precipitator for commercial kitchen ventilation.

electrostatic precipitator diagram fume ruihe Kitchen Electrostatic Precipitator manufacture 1

electrostatic precipitator diagram fume ruihe Kitchen Electrostatic Precipitator manufacture 2

electrostatic precipitator diagram fume ruihe Kitchen Electrostatic Precipitator manufacture

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-21000 / DGRH-K-2-21000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. The product can be customized to the developing needs of the customers. Thanks to the unique design of electrostatic precipitator diagram, we are proud to present RUIHE products to customers all over the world. The product can be customized to the developing needs of the customers
2. The product can be mainly applied in commercial kitchen, restaurant and hotel. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. The product is exmained by a accomplished team to ensure the reliability of functions.
4. The product has an extended service life to deliver an enduring performance. The product has better adsorption capacity in electric field owing to its greater absorption areas
5. Kitchen Electrostatic Precipitator produced by Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is distinguished by electrostatic precipitator working principle, stability and long life. The product is patented for its unique design and advanced technology

RUIHE-Find Smoke Filter Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter

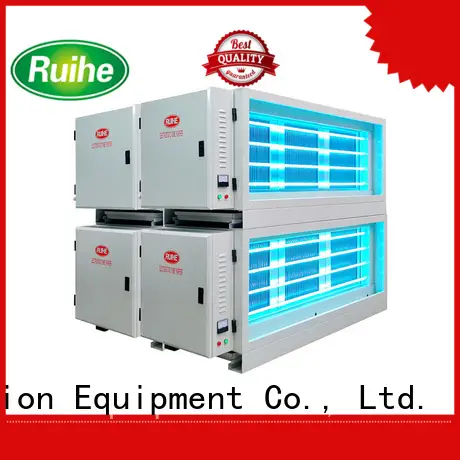

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

"RUIHE double pass electrostatic precipitator is designed for commercial cooking fume, odour capture and management. Over 98% removal rate ESP. It includes a collector cell combination of high voltage and low voltage section. With advantages of low pressure drop, there will be lower energy cost to operate it. "

Specification

DGRH-K-2-21000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-21000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-21000	18000-21000	128018351460	1560*1260	>98%	<100	1680	488	W/O UV-C tube,double pass
2	DGRH-K-2-21000U	18000-21000	128018351460	1560*1260	>98%	<100	4080	516	W/ 16*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Find Smoke Filter Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-1

Commercial kitchen

RUIHE-Find Smoke Filter Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-2

Restaurants

RUIHE-Find Smoke Filter Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has a front-runner status when speaking of Kitchen Electrostatic Precipitator. - Let Ruizhaohe electrostatic precipitator build and manage a team of professionals for your business.
2. Welcome To Visit Our Factory! For Your Oem Or Odm electrostatic air filter, electrostatic precipitator diagram, electrostatic precipitator working principle Orders, RUIHE Is Sure That We Can Make You Satisfied. If You Want To Get More Types Of Our Products. Please Contact Us.
3. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. holds grand technical capacity in electrostatic precipitator ppt realm. - The Core Values of Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. is creating value for customers. Get info!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
