Leading brand of electrostatic precipitator for commercial kitchen ventilation.

Top commercial extractor fan filters dgrhk10500 manufacturers for smoke

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-7000 / DGRH-K-2-7000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. During the production of RUIHE / DR. AIRE , a series of procedures are conducted, namely, ball-milling, molding, sintering, vitrification, drying, glazing, acid dipping, etc. The product is water-proof as it adopts hammer finish paint
2. Seen from the long run, the product helps save money and create profits for the manufacturers, and conserve energy for the environment. The product can remove smaller oil particles as small as 0.01 microns
3. commercial extractor fan filters Selection of high-quality environmentally friendly materials, the use of advanced manufacturing technology Seiko secret agents, excellent performance, stable quality, reliable quality, safe use, durable.
4. commercial extractor fan filters is made of original environmentally friendly materials and refined by fine processing technology. It is non-toxic, tasteless, safe and environmentally friendly, and can be used with confidence.
5. commercial extractor fan filters Selected high-quality ABS material, refined by advanced production and processing technology, has the advantages of durability, shock resistance, drop resistance, long service life, etc., it is your quality choice.

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting

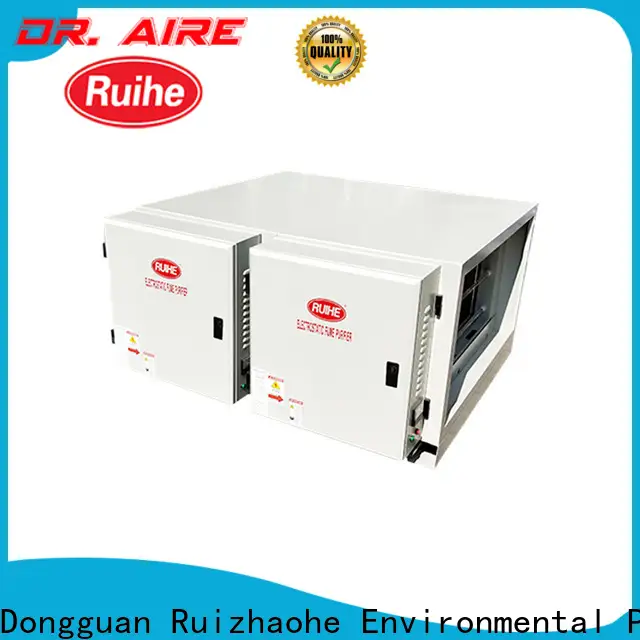

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Double pass RUIHE ESP system is designed for air emission at low altitude street level. Grease, smoke and odor emissions from commercial cooking applications will be purified efficiently to meet city air quality environmental protection standards. It will ensure smokeless and minimun odour emission from outlet in ductwork.

Specification

DGRH-K-2-7000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-7000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-7000	6000-7000	12801300730	1020*530	>98%	<100	560	188	W/O UV-C tube, double pass
2	DGRH-K-2-7000U	6000-7000	12801300730	1020*530	>98%	<100	1160	198	W/ 6*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-1

Commercial kitchen

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-2

Restaurants

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has been focusing on the market research, development, production, and marketing of over the past years. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. has advanced production equipment and cutting-edge production technology.
2. RUIHE / DR. AIRE cooperates with partners to ensure the quality of commercial extractor fan filters .
3. RUIHE / DR. AIRE produces electrostatic precipitator buy through modern technology. The service quality has been always highly stressed by RUIHE / DR. AIRE. Ask online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
