Commercial kitchen
Leading brand of electrostatic precipitator for commercial kitchen ventilation.
RUIHE / DR. AIRE Wholesale kitchen odour control systems company for home
Shipping information:
1 Unit/ wooden case
Model:
DGRH-K-31500 / DGRH-K-31500U
MOQ:
1 Unit
Payment:
T/T, L/C
Delivery time:
Depends on order quantity
Start Port:
Shenzhen, Guangzhou
Certification:
CE, RoHS, ISO9001:2015
Delivery Time
5-10 days
Start Port
Shenzhen, Guangzhou
Supply Ability
1000 units
Company Advantages
1. The appearance design of RUIHE / DR. AIRE kitchen odour control systems is carried out by our designers who have the ultimate pursuit of performance and aesthetics to enable the product meets the market demands. With sealing strip applied, the product ensures sealing performance
2. This product will finally contribute to the improvement in production efficiency. Because it can effectively eliminate human error during operation. The product can remove smaller oil particles as small as 0.01 microns
3. is an economical kitchen odour control systems with very low maintenance cost. The product can be customized to the developing needs of the customers
![RUIHE-Best Commercial Kitchen Air Cleaner Filter Electrostatic Precipitator]()
![RUIHE-Best Commercial Kitchen Air Cleaner Filter Electrostatic Precipitator-1]()
![RUIHE-Best Commercial Kitchen Air Cleaner Filter Electrostatic Precipitator-2]()
![RUIHE-Best Commercial Kitchen Air Cleaner Filter Electrostatic Precipitator-3]()
Company Features
1. Our factory has conducted a rigorous production management system. This system provides a scientific production process control. This has only enabled us to control production costs but also increase efficiency.
2. We aim at the industry, and would like to be number one in this field.
1. The appearance design of RUIHE / DR. AIRE kitchen odour control systems is carried out by our designers who have the ultimate pursuit of performance and aesthetics to enable the product meets the market demands. With sealing strip applied, the product ensures sealing performance
2. This product will finally contribute to the improvement in production efficiency. Because it can effectively eliminate human error during operation. The product can remove smaller oil particles as small as 0.01 microns
3. is an economical kitchen odour control systems with very low maintenance cost. The product can be customized to the developing needs of the customers

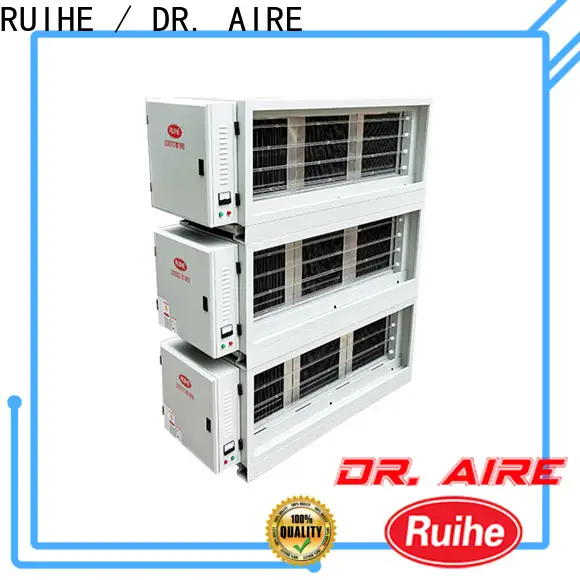

Commercial kitchen electrostatic precipitator （ESP）- High altitude air emission
RUIHE ESP system ensures maximum effectiveness through the use of cooking fume filter and food odour control. Commercial Kitchen Exhaust contains grease, smoke and food odors which can be filtered efficiently to meet city air quality environmental protection standards. RUIHE ESP system unit which is weatherproof can be install indoor and outdoor.
Specification
DGRH-K-31500 Electrostatic Precipitator (ESP) - single pass 90-93% removal efficiency
DGRH-K-31500U Electrostatic Precipitator (ESP) W/UV-C filter - single pass 90-93% removal efficiency
| NO. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power (Watt) | Net Wight (KG) | Remark |
| 1 | DGRH-K-31500 | 27000-31500 | 640*1835*2190 | 1560*1990 | 90-93% | <100 | 1260 | 366 | W/O UV-C tube, single pass |
| 2 | DGRH-K-31500U | 27000-31500 | 640*1835*2190 | 1560*1990 | 90-93% | <100 | 3060 | 387 | W/ 12*UV-C tube,single pass |
Application
Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.
Restaurants
Hotels
Advantage
1
1
Dirty air is double pass. Up to 90-93% Smoke, grease particles removal efficiency rate
1
1
Modular in design: Easy installation, maintenance and cleaning.
1
1
Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
1
1
Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
1
1
Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement.
1
1
Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
1
1
Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
1
1
Greatly reduces the grease accumulation in the ducts and fire hazard.
1
1
Optional: Photolysis and odour removal efficiently with UV-C filter systems.
Company Features
1. Our factory has conducted a rigorous production management system. This system provides a scientific production process control. This has only enabled us to control production costs but also increase efficiency.
2. We aim at the industry, and would like to be number one in this field.
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
you might like
no data
ABOUT RUIHE (DR. AIRE)
Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd
We are specializing in the design, production and after-sales service of fume purification
equipment and exhaust gas treatment equipment.
ONE-STOP AIR CLEANING MANAGEMENT SOLUTIONS
(1) - Commercial cooking fume odour management
(2) - Industrial exhaust management
(3) - CNC machines oil mist management
