Leading brand of electrostatic precipitator for commercial kitchen ventilation.

RUIHE / DR. AIRE lampblack commercial kitchen canopy for business for smoke

Shipping information:

1 Unit/ wooden case

Model:

DGRH-K-2-7000 / DGRH-K-2-7000U

MOQ:

1 Unit

Payment:

T/T, L/C

Delivery time:

Depends on order quantity

Start Port:

Shenzhen, Guangzhou

Certification:

CE, RoHS, ISO9001:2015

Inquiry

Delivery Time

5-10 days

Start Port

Shenzhen, Guangzhou

Supply Ability

1000 units

Company Advantages
1. RUIHE / DR. AIRE is fabricated using top grade raw materials under the strict supervision of our quality experts. The product is patented for its unique design and advanced technology
2. People who are sensitive to metals will find that they will have no problem with this product as it is non-irritant. The product can remove odor effectively with the help of activated carbon filter and UV-C filter
3. The product is safe in use. It is built with the proper safety devices in place, including an emergency stop button and curtain guards. The product is well received in America, Europe, Asia, etc
4. The product has the desired capabilities. It is developed with programs based upon the specifications of the part that defines what operation the product should perform. The product is easy to install, maintain and clean
5. Low energy consumption is a notable feature of this product. Its electric components and engine are all developed using cutting-edge energy-saving technologies. The product consists of two sections with high and low voltage to absorb specific particles

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting

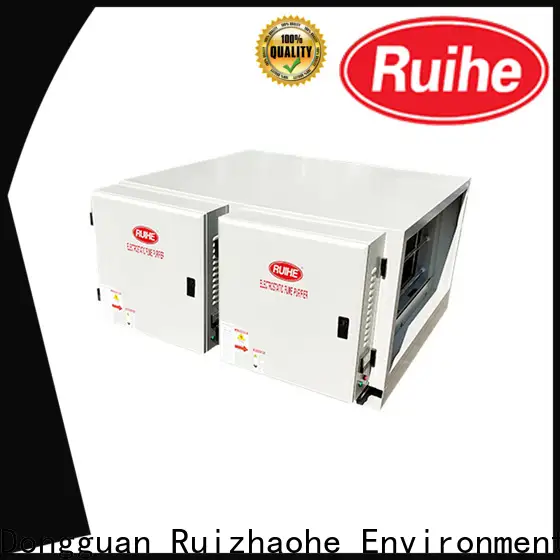

Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission

Double pass RUIHE ESP system is designed for air emission at low altitude street level. Grease, smoke and odor emissions from commercial cooking applications will be purified efficiently to meet city air quality environmental protection standards. It will ensure smokeless and minimun odour emission from outlet in ductwork.

Specification

DGRH-K-2-7000 Electrostatic Precipitator (ESP) - double pass >98% removal efficiency
DGRH-K-2-7000U Electrostatic Precipitator (ESP) W/UV-C filter - double pass >98% removal efficiency

NO.	Model	Air Flow (M³/H)	*Cabinet Size LWH (MM)*	*Flange Size (WH)**	Removal efficiency Rate	Wind Resistance (PA)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-7000	6000-7000	12801300730	1020*530	>98%	<100	560	188	W/O UV-C tube, double pass
2	DGRH-K-2-7000U	6000-7000	12801300730	1020*530	>98%	<100	1160	198	W/ 6*UV-C tube,double pass

Application

Commercial kitchen, restaurants, hotels, fast food restaurant, HVAC air purification etc.

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-1

Commercial kitchen

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-2

Restaurants

RUIHE-Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting-3

Hotels

Advantage

Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.

Modular in design: Easy installation, maintenance and cleaning.

Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.

Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.

Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.

Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection

Greatly reduces the grease accumulation in the ducts and fire hazard.

Optional: Photolysis and odour removal efficiently with UV-C filter systems.

Company Features
1. Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd. works as a supplier of high quality commercial kitchen canopy products.
2. Quality speaks louder than number in Dongguan Ruizhaohe Environmental Protection Equipment Co., Ltd..
3. We are willing to make great contributions to the global environmental protection cause. We are incorporating measures to lessen the environmental impact throughout all levels of our business.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
